TP9568 IS Portable

Stay Connected in
Hazardous Locations

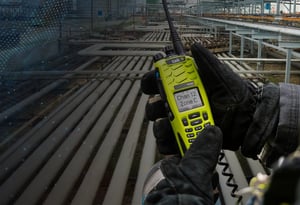

Tait Tough TP9568 IS (C1D1) Portable Radios

DMR INTRINSICALLY SAFE PORTABLES

Intrinsically Safe (IS) Division 1 Tait portables are engineered to operate safely in hazardous, potentially explosive locations.

TP9500 IS portables enhance the user experience with a color screen, clear audio and ergonomic controls, all built Tait Tough for critical communications. Wi-Fi® over-the-air-programming (OTAP), enabling workers to make critical updates to their radios quickly and efficiently.

Currently available in the US and Canada

Why choose TP9500 Intrinsically Safe

Highly Flexible Connectivity Options

Highly Flexible Connectivity Options

The TP9500 IS supports multiple modes - DMR Tier 3 Trunking, DMR Tier 2 Conventional, Analog Conventional and MPT Trunking - making it easier than ever to migrate and evolve your communications solution as your needs change over time. Wi-Fi® capability allows wireless over-the-air-programming, and a range of audio accessories can connect via Bluetooth® or wired connection.

Exceptional Audio

Exceptional Audio

Clear voice communication is crucial in emergency situations. The TP9500 ISs audio features help first responders hear and respond clearly. Active Noise Cancelation uses two separate microphones to receive voice and background sounds separately, isolating and reducing noise. A DMR standard compliant digital vocoder digitizes human voice, reducing background noise.

Enhanced User Experience

Enhanced User Experience

The large, color screen has display options for bright or dark environments, and easily recognizable alerts. The interface is ergonomically designed to fit comfortably in the hand, for easy use. The Tait Enable suite of software takes the hassle out of managing your radio fleet.

Class I Dvision 1 Intrinsically Safe

Stay connected in hazardous locations

TP9500 Division 1 Intrinsically Safe portables are engineered to operate safely in hazardous, potentially explosive locations.

Enhanced Worker Safety

Enhanced Worker Safety

Keep your team safe and connected in the field. The TP9500 IS features integrated GPS with advanced Location Services options. The Tait GeoFencing option helps your team to work smarter and safer with pre-programmed location based actions, like changing networks, or sending status alerts. Man Down and Lone Worker modes can trigger automated alerts when an individual is in potential danger. A Programmable Emergency Key can instantly request assistance.

The Toughest Portables in the Industry

The Toughest Portables in the Industry

Your team needs radios you can rely on, no matter what the environment. The TP9500 IS is built to withstand a lot of punishment, rated IP68 and IP65 rated dust-proof, immersible, resistant to water jets and can survive countless drops onto concrete.
Designed to exceed Military Standards 810G, the corners are built for shock absorption and the speaker features an innovative water shedding grille, quickly dispersing water.

Technical Specifications

Frequency Bands

VHF: 136-174 MHz (B1),
UHF: 378-470 MHz (HK)

Output Power

VHF: 5W, 3W, 2W, 1W,
UHF: 4W, 2.5W, 2W, 1W

Channels/Zones

4,000 channels/ 100 zones

Tait Tough

Military Standards for high humidity, sand & dust, vibration, shock, rain, solar radiation, and more. IP68 & IP65 water and dust protection. Operating temperature of 22°F to 140°F (-30°C to 60°C).

Receiver Sensitivity

Analog Sensitivity, 12dBSINAD: 0.22μ (-120dBm) for VHF, UHF, and 700/800MHz
Digital Sensitivity (DMR) 1%BER (ETS300-113): 0.25μ (-119dBm) for VHF, UHF, and 700/800MHz,
Digital Sensitivity (DMR) 5%BER: 0.16μ (-123dBm) for VHF, UHF, and 700/800MHz

Dimensions

Dimensions (DxWxH)
With Li-Ion 2300 mAh battery: 1.77x 2.56 x 5.71in (45x 65x 145mm) excluding knobs

Weight
With Li-Ion 2300 mAh battery: 13.72oz (389g)

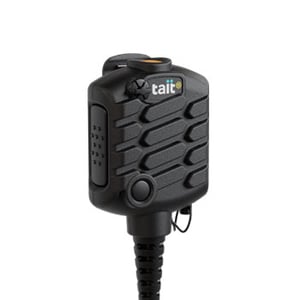

TP9500 Intrinsically Safe Accessories
