TB9400 Base Station/Repeater

The Tait TB9400 provides unbeatable performance and reliability for organizations around the world. The TB9400 delivers on cost effective deployment and operational efficiency. P25 Phase 2 provides for spectral efficiency, Linear Simulcast Modulation (LSM) for greater coverage, and remote network management for effective operations in all modes.
TB9400-top-640x360

Why choose TB9400?

agency

Ease of migration

To ensure a smooth migration from Analog to P25 or DMR, the TB9400 features Analog-Simulcast IP, P25 Phase 1, P25 Phase 2, DMR Tier 2 and DMR Tier 3.

Tait_I_web_05_reliability

Reliability you can depend on

The TB9400 is MIL-STD designed and tested for reliability to mitigate network outages. With its intelligence and reliability, the TB9400 base station is the cornerstone of a Tait P25 Phase 2 system; helping to keep your staff safe and your organization running to its full potential.

management

Efficient network management

The TB9400 features remote management and monitoring options including inbuilt diagnostics and access level control, multiple user accounts, remote fault diagnosis, and detailed alarm monitoring and management via IP.

network

Flexiblity

The TB9400 provides operation in 700/800MHz, VHF and UHF bands. Its modular design and IP connectivity provide flexibility in network design and scalability, allowing your network to easily expand to suit the needs of your organization.

secure

Secure communications

The extensive remote management and monitoring options supported by the TB9400 have a focus on security, ensuring data and communications remain confidential.

interoperable

Open standards compliant

Designed for mission-critical operations, the TB9400 is open standards compliant, ensuring interoperability with other agencies and enabling greater choice for a mission-critical communications solution to best meet your requirements.

Customize-140x140

Customization

Control, customize, and enhance base station operations with TaskBuilder, by creating rules that extend the functionality of the base station. Rules can control channel changes, digital outputs, timers, and alarms, based on events and external signals.

Technical specifications

Frequency Bands

VHF: 136-174 MHz,
UHF: 400-440 MHz, 440-480MHz and 470-520MHz,
700/800MHz: 762-776 and 850-870 MHz; 792-824 MHz (receive only)

Transmit power rating

100 W: Programmable 10-100 W (in 1 W steps)
50 W: Programmable 5-50 W (in 1 W steps)

Channels/Zones

1,000

Tait Tough

Military Standards for altitude, humidity, vibration and shock. Operating temperature of -22ºF to +140ºF (-30ºC to +60ºC).

Receiver Sensitivity

Analog Sensitivity -119 dBm @ 12 dB SINAD
P25 Sensitivity - (TIA-102) 0.22μV (-120 dBm) @ 1% BER

Dimensions (DxWxH)

15.8 x 19 x 7 in (400.5 x 482.6 x176.8 mm) 4U rack space

Discover more about TB9400

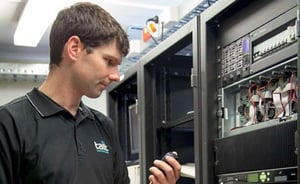

Flexible-Base-Stations-440x270 The Most Flexible Base Stations on the Market
