Tait 9900 Series Multiband Multiprotocol

Together for a safer world

Tait-Tough-9900-Series-logo-600x66

MULTIBAND MULTIPROTOCOL PORTABLES AND MOBILES
DMR P25

Significantly improve community safety outcomes with enhanced interoperability between multiple organizations with P25 and DMR open standard capabilities.

Seamless Multiband Performance

Tait 9900 series radios are configurable to operate on any combination of VHF, UHF, 7/800MHz and 900MHz bands, ensuring continuity in communications across agencies using different bands. Bands are not locked and can be reconfigured over the air at any time.

Seamless Multiband Performance

Maximum Connectivity

Connect to the full range of networks in current operations or future technology migrations including:

  • Conventional analog
  • P25 conventional digital
  • P25 trunking phase 1 and 2
  • DMR tier 2 and 3

A range of location services software options are supported by Tait 9900 series radios. GNSS hardware is standard in TP9900 and optional for TM9900.

Bluetooth audio and Wi-Fi OTAP (Over The Air Programming) are supported by TP9900 portables. TM9900 mobiles will support Bluetooth, Wi-Fi OTAP and 4G LTE options in a future release. Tait 9900 series radios also support OTAP via P25 or DMR Trunked networks. OTAP via Wi-Fi, P25 or DMR requires Tait EnableFleet.

Analog signaling includes two-tone decode, MDC1200, PL (CTCSS), DPL (DCS), and Selcall.

Maximum Connectivity
Maximum Connectivity

Need more information on Tait 9900 Series Multiband Multiprotocol?

Why choose Tait 9900 Series?

roven P25  and DMR Open Standard Interoperability

Proven P25  and DMR Open Standard Interoperability

Designed to meet the TIA-102 P25 Compliance Assessment Program and the DMR ETSI standards for interoperability, Tait 9900 series radios offer the ability to switch between P25 and DMR networks just by changing the channel.

This level of interoperability has been proven to reduce incident response time with more effective, immediate communication between first responders and other public sector organizations.

Enhanced Worker Safety

Enhanced Worker Safety

All Tait 9900 units are equipped with inactivity timers (Lone Worker) to send automated safety alerts and a programmable emergency key for manual safety alerts while the TP9900 also has sensors to detect falls (Man Down). Combined with optional location services, dispatchers are better equipped to guide an effective response. Optional Tait Geofencing software also enables location-based workflow automation.

Extensive Voice and Data Capabilities

Extensive Voice and Data Capabilities

  • 4,000 channels/100 zones shared between P25 and DMR modes
  • 1000 P25 talk groups, supporting up to 2,000 members
  • 300 scan groups with up to 50 members each and a maximum of 2,000 members
    Pre-set status messages
  • Supports conventional and trunked IP data and P25 data such as GNSS location
Fully Secure End-to-End Encription

Fully Secure End-to-End Encription

Connect to Ensure only authorized personnel can hear your communications with highly secure end-to-end encryption management options, including:

  • FIPS 140-2 certified module
  • AES, DES and ARC4 algorithm
  • Tait EnableProtect Advanced System Key
  • Tait EnableProtect Key Fill Device
  • Tait EnableProtect Key Management Facility
  • Over The Air Rekeying (OTAR)

How to buy Tait 9900 Series Multiband Multiprotocol Radios

All Tait products are available with a range of options, accessories and services specific to your industry. Get in touch to request pricing or a demonstration.
How to buy Tait 9900 Series Multiband Multiprotocol Radios

Choose Your TP9900 Multiprotocol Portable

Choose Your TP9800

TP9900

Best in class for size, weight and shift life

Experience the lightest P25 and DMR multiband portable radio on the market with high- capacity battery and compact design – all built for TAIT TOUGH reliability. The TP9900 features an enhanced ergonomic radio grip and controls for easy operation with or without gloves.

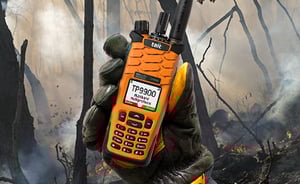

RUGGED, LIGHTWEIGHT AND BUILT TO LAST
RUGGED, LIGHTWEIGHT AND BUILT TO LAST
BUILT TO LAST Experience the most compact multiprotocol, multiband portable radio on the market with up to 19 hours shift life in TDMA mode and a highly reliable Tait Tough design built to withstand rough treatment in harsh environments.

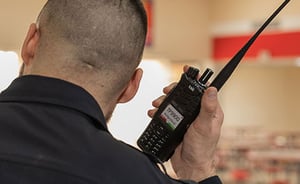

HEAR AND BE HEARD IN ANY ENVIRONMENT
HEAR AND BE HEARD IN ANY ENVIRONMENT
A powerful 3W speaker, and dual microphone with active noise cancellation removes background noise in both analog and digital modes for clearer communication in any situation

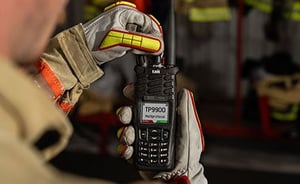

EASY TO USE IN EMERGENCY SITUATIONS
EASY TO USE IN EMERGENCY SITUATIONS
Easy to hold casing design and user-friendly control allow radio operation with or without gloves. With four programmable function keys and a three-way selector, responders have everything they need at their fingertips.

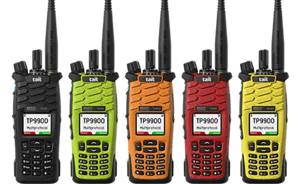

COLOR OPTIONS FOR EASY IDENTIFICATION IN THE FIELD
COLOR OPTIONS FOR EASY IDENTIFICATION IN THE FIELD
Black, red, yellow, orange and hi-visibility green options.

Tait 9900 Series Accessories

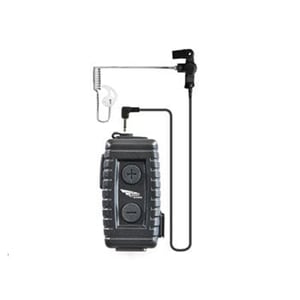

Lapel Mic Nighthawk Bluetooth® with 3.5mm earpiece Lapel Mic Nighthawk Bluetooth® with 3.5mm earpiece

Key Features

  • Talk time 12hrs / Standby 80hrs
  • USB rechargeable li-ion battery, battery is replaceable
  • 10m (32ft) operational range
  • 3.5mm audio jack supports external earpiece or external microphone
TSM3e-440x270 TSM3e Speaker Mic

Key Features

  • Dust proof and water submersible (IP67 rated with connector jack sealed)
  • Tait design water shedding grille and microphone
  • Function button (programmable emergency button)
TSM4 Speaker Mic TSM4 Speaker Mic

Key Features

  • Rugged dust proof and water submersible (IP68)
  • Tait design water shed grille and microphone
  • Two glove friendly function buttons (programmable emergency button)
  • 3W speaker
Aina PTT Voice Responder Aina PTT Voice Responder

Key Features

  • Covert mode option
  • IP67 dust and water resistant
  • Easy to use – simple Bluetooth pairing, two PTT buttons, 3.5mm standard audio jack
Heavy Duty Behind Head Heavy Duty Behind Head

Key Features

  • Designed for use with a helmet or hat
  • Discreet c-style headband for comfortable, stable fit
  • In-line PTT
Earphone In-Ear Earphone In-Ear

Key Features

  • 2.5mm plug compatible with Evolution and Storm models
  • Designed to fit either the left or right ear
  • Quick disconnect earphone adapter for easy acoustic tube replacement
Ear Hanger Ear Hanger

Key Features

  • Soft rubber ear loop with speaker
  • Rotational clip to fit either the left or the right ear
  • 2.5mm connector

TP9900 Technical Specifications

Multiband Options

Operate across one or more frequency bands, including VHF (136-174MHz), UHF (378-520MHz), and 700/800MHz (757-870MHz). 900MHz (896-941MHz) singleband operation only, requires matching 900MHz singleband antenna.

Long Shift Life

19 hours in TDMA mode at 5/5/90 with 5W transmit power and high capacity battery
17 hours in TDMA mode at 5/5/90 with 6W transmit power and high capacity battery (6W only available for VHF operation in USA and Canada).

Channels/Zones

4,000 channels shared between P25 and DMR, 100 zones



Built Tait Tough

Exceeds MIL-STD-810G compliance for shock, vibration, heat, rain, and more.

Options and Accessories

Compatible with TP9000 family of batteries, chargers, and audio accessories.

Dimensions (with High Capacity battery)

1.77 x 2.56 x 5.71in / 45 x 65 x 145mm (excluding knobs and antenna).

Weight (with High Capacity battery)

13.42oz (382g), without antenna.

TM9900 Technical Specifications

Multiband Options

Operate across one or more frequency bands, including VHF (136-174MHz), UHF (378-520MHz), 700/800MHz (762–870MHz) and 900MHz (896–941MHz).

Output Power

VHF: 50W, 25W, 15W, 10W
UHF: 40W, 25W, 15W, 10W
700/800MHz: ≤806MHz: 30W, 25W,10W, 2W; >806MHz: 35W, 25W, 10W, 2W
900MHz: 30W, 15W, 5W, 2W



Channels/Zones

4,000 channels shared between P25 and DMR, 100 zones

Tait Tough

Military Standards for high humidity, sand & dust, vibration, shock, rain, solar radiation, and more. IP54 water and dust resistant. Operating temperature of -22°F to +140°F (-30°C to +60°C).

Dimensions

Body dimensions (DxWxH)
7.7 x 6.3 x 2.1in (195 x 160 x 52mm)



Weight

3.11b (1.4kg)
