February 25, 20154 min read

Advantages of DMR versus TETRA



If you are considering a new radio system or a replacement/upgrade of your existing system, choosing the right technology is of prime importance. The decision to use a particular technology should always be based on best fit to achieve the project’s objectives.

In the article below, we have aimed at comparing the relative advantages and disadvantages of DMR and TETRA along several factors including coverage, frequency bands, fallback to analog and the ease and cost of migration.

What is TETRA?

  • Is an ETSI standard digital radio solution that is more like a cellular telephone system than other LMR standards.
  • Standards (EN 300 392) were published in 1995 – the same time as P25 phase 1 was published in the USA.
  • Operates in 25kHz channels and uses 4 slot TDMA to achieve 6.25kHz equivalence (1 communication path per 6.25kHz of spectrum)
  • Only includes trunked operation.
  • Primary market is Europe. It is starting to appear in the USA and Oceania.

What is DMR?

  • DMR is an ETSI standard, low complexity professional digital radio solution designed to replace analog FM radio that is cost effective.
  • Standards (ETSI TS102 361) were published in 2005. There are 3 ‘Tiers’ specified – Tier II and Tier III are for professional users.
  • Operates in 12.5kHz channels and uses 2 slot TDMA (Time Division Multiple Access) to achieve 6.25kHz equivalence. Tier II is conventional, Tier III is trunked.
  • Offers an easy path to migrate analog FM LMR users to 6.25kHz digital radio technology.
  • Fast gaining traction in the Americas and Oceania as a lower cost alternative to P25.

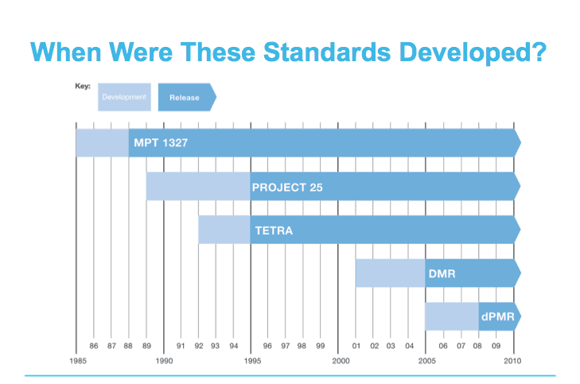

Time line of standards in terms of technology

Key Differentiators

Coverage

  • DMR has the same coverage as analog FM. Users of Analog FM upgrading to DMR can re-use all the same sites.
  • In theory – to cover the same area would need 7 TETRA sites for every 2 DMR sites, i.e. 2 DMR sites cover roughly the same area as 7 TETRA sites.
  • Practical experience from real life TETRA Deployments shows TETRA coverage is worse than this. For more information you can read the DMR or TETRA technical comparison of coverage article

Choice of Frequency Bands

  • DMR systems can be deployed in any band above 136MHz used by analog FM LMR (VHF, UHF or 700/800MHz). Analog FM users upgrading to DMR can re-use their existing channels.
  • TETRA is limited to parts of the spectrum where 25kHz channels are licensed. In Europe this is 380-430MHz. 800MHz is available in USA, Australia and New Zealand.
  • Analog FM users migrating to TETRA will probably need to license new channels.



Fallback to Analog FM

  • Modern DMR terminals have an analog FM fall back mode. They support analog narrowband FM mode as well as the new digital mode. This means that networks can be upgraded in stages, and that the fleet of radios can be upgraded as radios reach the end of their useful life. Users with new digital radios can talk with those on analog FM radios, using analog channels in the same band.
  • TETRA has no analog FM fall back mode.



Ease / cost of Migration from Analog FM

  • An analog FM user migrating to TETRA will need completely new infrastructure, additional sites, and probably need to license new channels.
  • An FM user migrating to DMR can re-use existing infrastructure, existing sites, and existing frequencies. It is a very simple migration (ease of migration is a fundamental of the DMR standard).



Important Takeaways

  • DMR is designed for high volumes of radio traffic over wide coverage areas. For example, it is an excellent fit for low cost, mission critical applications. Tait GridLink and transport networks (many data messages coming from throughout a large area) are perfect applications for DMR.
  • TETRA is designed for high volumes of radio traffic over smaller coverage areas within dense urban environments.
  • There are references to number of TETRA systems vs number of DMR systems in Europe, it is misleading. It is only heavily weighted in favor of TETRA because it has existed much longer. This is not a relevant statistic when considering which technology is best for the job.

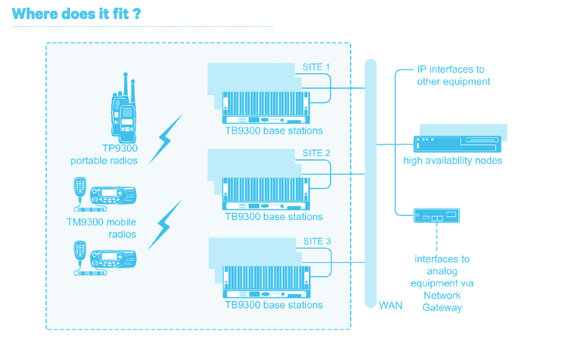

Diagram comparing DMR vs TETRA use case and fit

7 key questions to think about

  • Do you have an existing analog LMR radio system you are looking to replace? If so, what type of system is it (conventional, trunked eg: MPT1327)?
  • How many sites does your system use? How far apart are they? Do you have good coverage now, or are there dead spots you need to fill?
  • What frequencies / channels do you have licensed? Do you want to re-use these?
  • How many users will there be on the system? How are they distributed throughout the covered are? Is the main use voice or data? If voice – how long is a typical conversation? If data, how long is a typical message?
  • Is system reliability and flexibility important to you?
  • DMR Tier 3 is the natural replacement for analog MPT 1327 solutions. How does that change your organization?
  • Do you maintain your own radio system at present? Would you consider it being managed?

Transitioning from analog to digital can raise plenty of questions. If these questions were relevant to you and you need help, then please contact us or leave a comment below and we will get in touch with you.


Download the free DMR vs TETRA whitepaper to learn more.
