P25 Multiband TM9800

FLEXIBLE, RELIABLE,
MULTI-AGENCY COOPERATION

Tait Tough | TM9800

P25 MULTIBAND 25W MOBILES

The Tait TM9800 is a high-performing, flexible and robust mobile, designed for use in challenging environments while delivering high quality audio and intuitive operation to first responders around the world.

Why choose TM9800?

Seamless Multiband Performance

Seamless Multiband Performance

The TM9800 Multiband Mobile is configurable to operate on any combination of 136-174MHz or 378-520MHz. Flexible and simple ordering and deployment of single band or multiband operation at time of purchase, or subsequently over the air. Bands are not locked and can be reconfigured.

integ-cell-radio-140x140

Maximum Connectivity

Connect to the range of networks in current operations or future technology. Broadband data options boost operational performance with edge computing capability, applications, WiFi vehicle area networks and LTE connectivity.

P25-icon-140x140

Proven P25 Interoperability

Enable multi-agency response and multi-vendor compatibility for voice, data and encryption methods -  the TM9800 is designed to meet TIA-102 P25 Compliance Assessment Program requirements.

man_down

Enhanced Worker Safety

Lone Worker feature included as standard to send automated safety alerts and can combine with location data and Tait GeoFencing software options to guide an effective response. The programmable Emergency key can also send these safety alerts manually alongside supporting end-to-end AES encryption.

Tait_I_web_Voice-and-data

Effective Operations with Voice and Data

The TM9800 supports conventional and trunked IP data and P25 data such as internal and external GNSS location capability alongside the ability to pre-set status messages to best suit your operations.

wifi-140x140

Efficient, Security-Focused Management

Over-the-air programming (OTAP) with Tait EnableFleet configuration management system delivers software and firmware changes over the Tait P25 Trunked radio network or WiFi, making it faster, easier and more affordable to update and optimize the performance of radios in your fleet.

Control head options

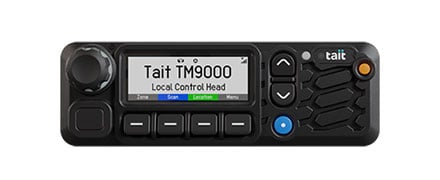

TCH3: Local mount control head with speaker
TM9800 TCH3: Local mount control head with speaker
TM9000-TCH4-440x180

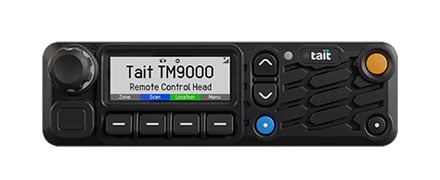

TM9800 TCH4: Remote control head with speaker
TM9000-TCH6-440x180

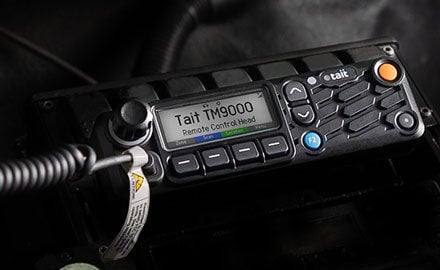

TM9800 TCH6: Remote control head with keypad

TM9455-S-440x270

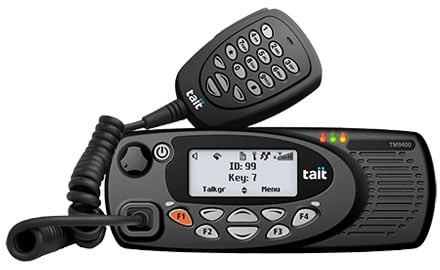

TM9800 Graphical Control Head

TM9455-HHCH-S-440x270

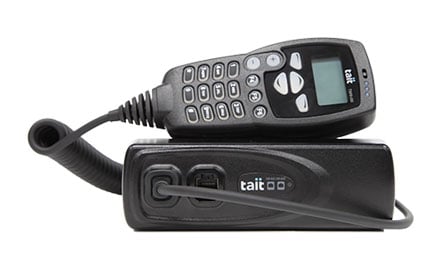

TM9800 Hand Held Control Head

Technical Specifications

Frequency Bands

VHF: 136-174MHz, UHF: 378-520MHz

Output Power

25W, 10W, 5W, 1W

Channels/Zones

1,000 channels/50 zones (2,000 channels/100 zones optional enhancement with software license)

Tait Tough

Military Standards for high humidity, sand & dust, vibration, shock, rain, solar radiation, and more. IP54 water and dust resistant. Operating temperature of -22°F to +140°F (-30°C to +60°C).

Receiver Sensitivity

Sensitivity, (analog) 12dB SINAD: 0.22μV (-120dBm) for VHF and UHF
Sensitivity, (P25) 5% BER: 0.22μV (-120dBm) for VHF and UHF

Dimensions

Body dimensions (DxWxH)
6.9 x 6.3 x 2.1in (175 x 160 x 52mm)

Discover more about TM9800 Multiband Mobiles

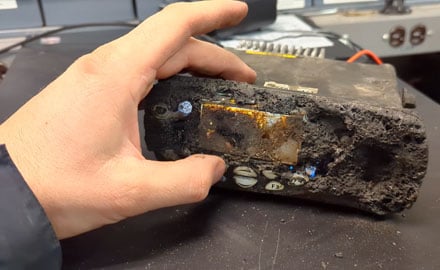

Tait Tough Radio Survives Vehicle Fire Tait Tough Radio Survives Vehicle Fire

Tait radios are built to withstand harsh conditions. We love when our customers share stories about Tait products surviving extreme punishment. This mobile radio was in a burning car, and still worked!

Tait Tough Tait Tough

Explore the toughest mission critical range! Witness the Tait 9000 series P25 and DMR radios as they are put through tests beyond industry standards.

Tait Mobile Radio - Options and Accessories Catalog Tait Mobile Radio - Options and Accessories Catalog

Explore the range of options and accessories available for Tait mobile radios and solutions. This catalog includes detailed item descriptions and order codes to simplify purchasing specific accessories.

What is Tait GeoFencing? What is Tait GeoFencing?

Did you know that Tait mobiles and portables are now capable of automated location controlled behavior through GeoFencing?  This is a powerful, unique capability that increases efficiency and worker safety – geographic areas and boundaries can be programmed for your Tait radio to automatically take certain actions based on its location.

What are Multiband Radios? – Tait Radio Academy What are Multiband Radios? – Tait Radio Academy

The Radio Academy provides free online learning dedicated to improving everyone’s radio knowledge. View the latest video in the ‘Basic Radio Awareness’ course, ‘What is Multiband Radio?’.

NEW Tait TM9000 Series Mobile Control Heads NEW Tait TM9000 Series Mobile Control Heads

Tait solutions are designed for maximum flexibility, to be tailored to each customer’s needs. Accordingly, Tait TM9000 Mobile Radios have a wide range of control heads, microphones, speakers, and installation kits to suit a variety of different vehicles and types of operation.

Our P25 Client Stories

Public Safety Network - New Zealand Public Safety Network - New Zealand

Tait Communications and Kordia, in partnership, have won a contract to build and maintain a secure digital land mobile radio communications network across New Zealand, a key element of the Government’s recently announced Public Safety Network (PSN).

Quitman Fire District, LA Quitman Fire District, LA

Quitman Fire District are the local fire department for Quitman, a small village located in the northwest corner of Jackson Parish, in the state of Louisiana, USA.

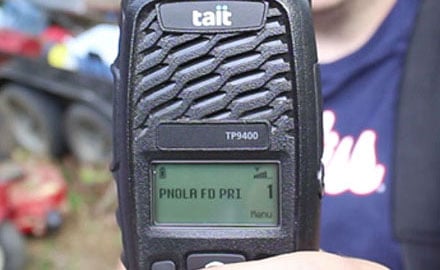

Panola County - MS USA Panola County - MS USA
